FEATURES & benefits
- Temperature, load and speed requirements can be met with various styles of bearing layers and bushing structures
- Sliding wear and heat generation is minimized by low sliding friction coefficient( as low as 0.03) with fiber-reinforced PTFE bearing contact layer under high side loads and high RPM conditions
- High thermal conductivity and self-lubricated effect are obtained by a sintered bronze layer to keep bushing from overheating, even during dry runs
- High load strength, physical stability, and super corrosion resistance can be achieved with a steel backing and tin coating layer

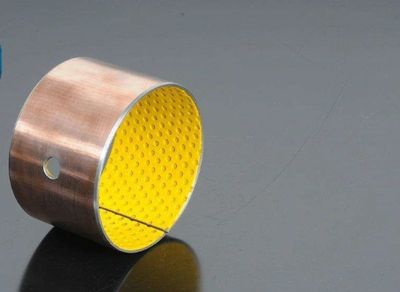

bushing types & technical parameters
- Steel Backing: Carbon steel backing to provide high load capacity(static 36,000psi, dynamic 20,000psi), rigidity, stability and high thermal conductivity( 50W/m.K)
- Sintered Porous Copper Tin Bronze : Pre-lubrication and dry run are achieved by retained lubricates and its high thermal conduction ability
- PTFE or POM Overlay: High wear resistance and low friction coefficient even during lowered lubrication conditions
aPPLICATIONS
RADIAL SELF LUBRICATING BEARING IN MUD MOTOR
- Mud motor run life extended even after lubricates are contaminated or lost due to seal failures
- Various design requirements can be met with our various styles and sizes of bushings and application experience
- Best price-performance ratio to lower mud motor operation costs, thanks to our economy pricing and stock availability
